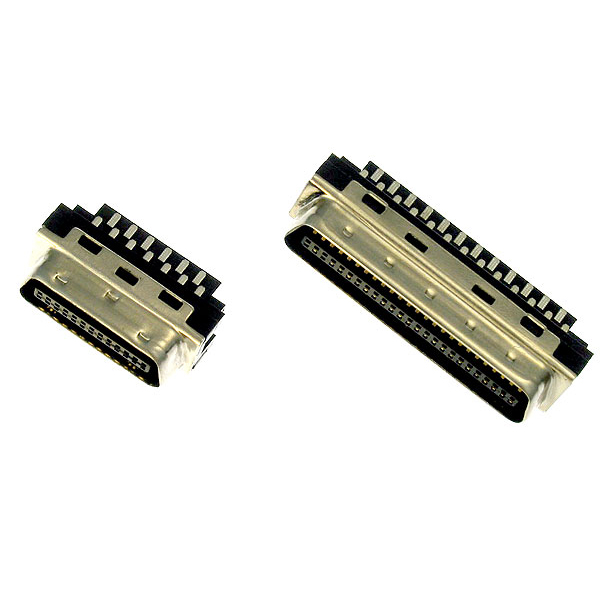

SOLDER TYPE FOR ROUND CABLE (MDR)

HALF PITCH CENTROINIC (RIBBON TYPE) SOLDER TYPE FOR ROUND CABLE

Product ID: MC1

The MC (MDR) connector system contains a ribbon-style contact based on 0.050" centerlines. Both the receptacle and the mating plug contain pre-loaded contacts for reliable contact during insertion and withdrawal cycles. The cable connectors utilize an insulation stripping U-contact to connect to the cable conductor wires. The contact is stamped from a high performance copper alloy, which provides an excellent combination of mechanical strength, electrical conductivity and corrosion resistance

MC1 Spec

Specifications:

NAME
- MC1: 1.27 RIBBON TYPE SOLDER FOR ROUND CABLE
No. OF CONTACTS
- 14, 20, 26, 36, 50, 68, 100
CONTACT TYPE
- S: SOCKECT
- P: PLUG
INSULATOR COLOR
- K: BLACK
PLATING
- A: GOLD FLASH
- E: 15u"
- F: 30u"
SHELL PLATING
- A: NICKEL

COVER TYPE
- A: NO COVER
- I: PASTIC COVER
- M: METAL COVER

COVER OD
- 6~14mm

SPECIAL FUNCTION
- C: WITH LATCH
- M: WITH M2.6 SCREW
